CUDY WR1200 AC1200 DUAL BAND Wi-Fi Router
CUDY WR1200 AC1200 DUAL BAND Wi-Fi Router
CUDY WR1200 AC1200 DUAL BAND Wi-Fi Router
Hardware SPECIFICATIONS:
|
CPU |
|
|
CPU Details |
580 MHz Single-Core, MIPS24KEC |
|
Memory/Storage |
|
|
Flash/ROM |
8 MB (64 Mbit ) NOR |
|
DDR/RAM |
64 MB (512 Mbit) DDR2 |
|
Wireless |
|
|
5 GHz Wi-Fi Speed |
867 Mbps |
|
2.4 GHz Wi-Fi Speed |
300 Mbps |
|
5 GHz Wi-Fi Streams |
2 Spatial Streams |
|
2.4 GHz Wi-Fi Streams |
2 Spatial Streams |
|
Wi-Fi Antennas |
4× Fixed |
|
Beamforming |
|
|
Range Performance |
Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
Wall Performance |
Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) |
|

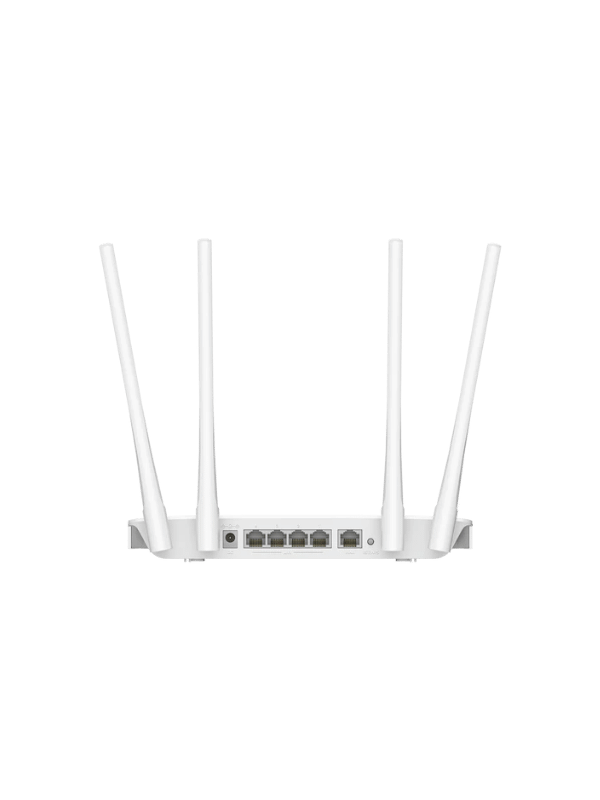

Interfaces |
|
|
10/100 Mbps RJ45 Ports |
5 |
|
Ethernet Notes |
1× WAN port, the rest are LAN ports |
|
LED |
• Power • Internet • Speed/Link/ACT of Ethernet Port • Wi-Fi |
|
Physical Buttons |
• WPS Button • Reset Button |
|
Power |
|
|
Power Input Type |
DC Jack |
|
Power Methods |
DC |
|
Power Input |
12V⎓1A |
|
Power Adapter In the Box |
Input: 100-240V~, 50/60Hz Output: 12V⎓1A |
|
Reliability |
|
|
Environment |
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) • Humidity: 10% ~ 90% non-condensing • Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications |
|
|
FCC, CE |
|
|
Mechanical |
|
|
Installation |
• Desktop • Wall-mount |
|
Dimension |
Main Part: 220×135×30 mm 8.66×5.31×1.18 inches |
|
Product Weight |
• EU: 259 g (9.14 oz.) • EU: 249.4 g (8.8 oz.) |
|

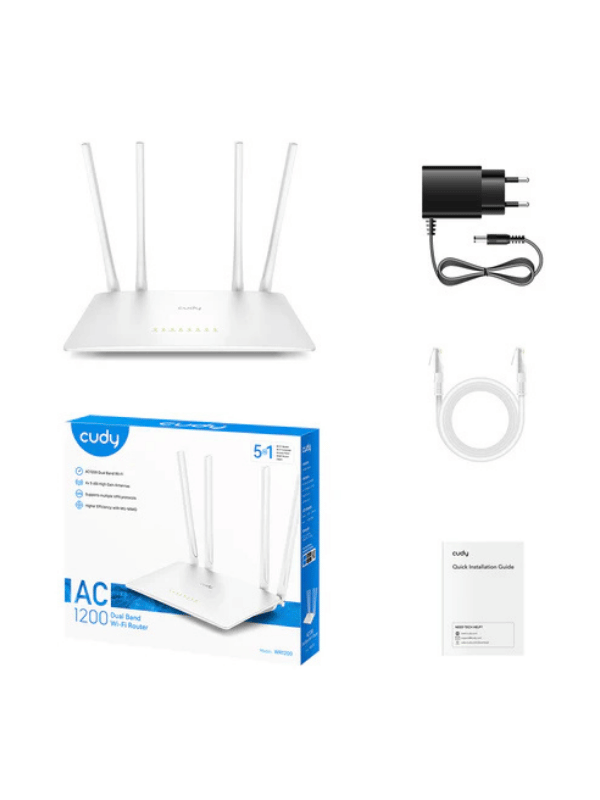

Package Content |
|
|
• WR1200 • Power Adapter • Ethernet Cable • Installation Guide |
|
|
Ordering Information |
|
|
Retail Package Weight |
• EU: 651 g (22.96 oz.) • EU: 615.4 g (21.71 oz.) |
|
Retail Package Dimension |
290×250×64 mm 11.42×9.84×2.52 inches |
|
Units per Carton |
16 |
|
Carton Dimension |
53.8×51.6×31.3 cm 21.18×20.31×12.32 inches |
|
Carton Gross Weight |
• EU: 11.9 kg (26.23 lbs) • EU: 11.3 kg (24.91 lbs) |
|
Carton Net Weight |
• EU: 10.4 kg (22.93 lbs) • EU: 10.1 kg (22.27 lbs) |
Software SPECIFICATIONS:
|
Model Version |
|
|
WR1200 2.1 |
|
|
Wireless |
|
|
Wi-Fi Standards |
Wi-Fi 5 |
|
Max Wi-Fi Modulation |
256-QAM |
|
Wi-Fi Efficiency |
MU-MIMO |
|
Wi-Fi Efficiency Note |
MU-MIMO available on 5 GHz |
|
Max Capacity |
128 |
|
Recommended Client Upper Limit |
40 |
|
Wi-Fi Channel Width |
Auto/20/40/80 MHz |
|
Wi-Fi Security |
WPA/WPA2/WPA3 |
|
Guest Network |
2.4 GHz, 5 GHz |
